Rendering failures

JavaScript applications are fragile. Issues with loading or executing JS files can interfere with the rendering process and break a page completely.

For pre-rendering, most issues occur when the renderer cannot determine when a page is ready and HTML can be captured.

EdgeComet provides detailed debug information for the entire process, including debug render with HAR data.

Step 1: Manual check

Before investigating further, open the page in a browser and check the JavaScript console for errors. Verify that all AJAX requests complete successfully.

Step 2: Configuration check

EdgeComet renders pages differently from a standard browser. By default, to speed up rendering, it does not load images, CSS, or media files. It also blocks requests to tracking domains, Google Maps, and similar services.

You can configure additional request blocks. Ensure these do not include endpoints required for rendering.

Global - edge-gateway.yaml

render:
  block_resources:
    - "*.analytics.com"
    - "*.tracking.io"

Host - example.com.yaml

render:
  block_resources:
    - "maps.googleapis.com"

In rare cases, pages may not render fully with image loading disabled. If you encounter this, enable image loading for the affected host:

Global - edge-gateway.yaml

render:
  blocked_resource_types: []  # Empty list enables all resource types

Host - example.com.yaml

render:
  blocked_resource_types: []

EdgeComet also blocks 45+ tracking and analytics domains by default (Google Analytics, Facebook, ad networks, etc.). If your page relies on third-party scripts for rendering, check the HAR debug output for blockedRequests to see what is being blocked.

Page content requirements

Page content must render fully without user interactions such as clicks or scrolls. Search engine bots do not interact with pages. If you use lazy loading triggered by user events, ensure it does not affect the main content.

Step 3: Check response headers

Before diving into detailed debugging, check the response headers for quick insights:

curl -I "https://example.com/page" \
  -H "X-Render-Key: your-api-key" \
  -H "User-Agent: Googlebot/2.1"

Header	Values	Meaning
X-Render-Source	rendered, cache, bypass, bypass_cache	How the response was generated
X-Cache-Age	Duration (e.g., 2m30s)	Time since content was cached
X-Unmatched-Dimension	true	User-Agent did not match any dimension, fallback was applied

If X-Render-Source shows bypass when you expect rendered, check your dimension configuration. The X-Unmatched-Dimension header indicates the User-Agent did not match any configured dimension patterns.

Step 4: Adjust render parameters

If AJAX requests complete successfully and no JavaScript errors appear, adjust the render configuration settings.

Global - edge-gateway.yaml

render:
  timeout: "30s"
  events:
    wait_for: "networkIdle"
    additional_wait: "2s"

Host - example.com.yaml

render:
  timeout: "30s"
  events:
    wait_for: "networkIdle"
    additional_wait: "2s"

timeout: Set at least 10 seconds. EdgeComet uses two timeout behaviors (see Render mode for details):

• Soft timeout: The lifecycle event (e.g., networkIdle) does not fire within the timeout. HTML is still captured, but the page may be incomplete. Check the HAR metadata for timed_out: true.
• Hard timeout: The entire render operation exceeds the Render Service maximum. The render fails completely with no HTML output.

wait_for: The networkIdle event waits until network activity stops. This is the safest option for pages with complex AJAX workflows, though it increases render time.

additional_wait: Adds a fixed delay after the wait event fires. Use as a last resort for pages that modify the DOM after network activity stops. Keep this value at 1-2 seconds maximum to avoid excessive render times.

Step 5: Stale cache fallback

If rendering consistently fails for certain pages, configure stale cache serving as a safety net. When a render fails, EdgeComet can serve previously cached content instead of returning an error.

Global - edge-gateway.yaml

render:
  cache:
    expired:
      strategy: "serve_stale"
      stale_ttl: "24h"

Host - example.com.yaml

render:
  cache:
    expired:
      strategy: "serve_stale"
      stale_ttl: "24h"

With this configuration, expired cache entries remain available for 24 hours after expiration. If a new render fails, the stale content is served instead.

Step 6: HAR debug

Use the Edge Gateway internal API to generate a HAR debug file for any URL. The file contains detailed information about page loading, including network requests and browser events.

curl "http://localhost:10071/debug/har/render?url=https://example.com&dimension=desktop&timeout=30s" \
  -H "X-Internal-Auth: your-internal-auth-key" \
  -o debug.har

Parameter	Description
url	Page URL to render (required)
dimension	Dimension name from host config: desktop, mobile, etc.
timeout	Render timeout, e.g., 30s, 45s

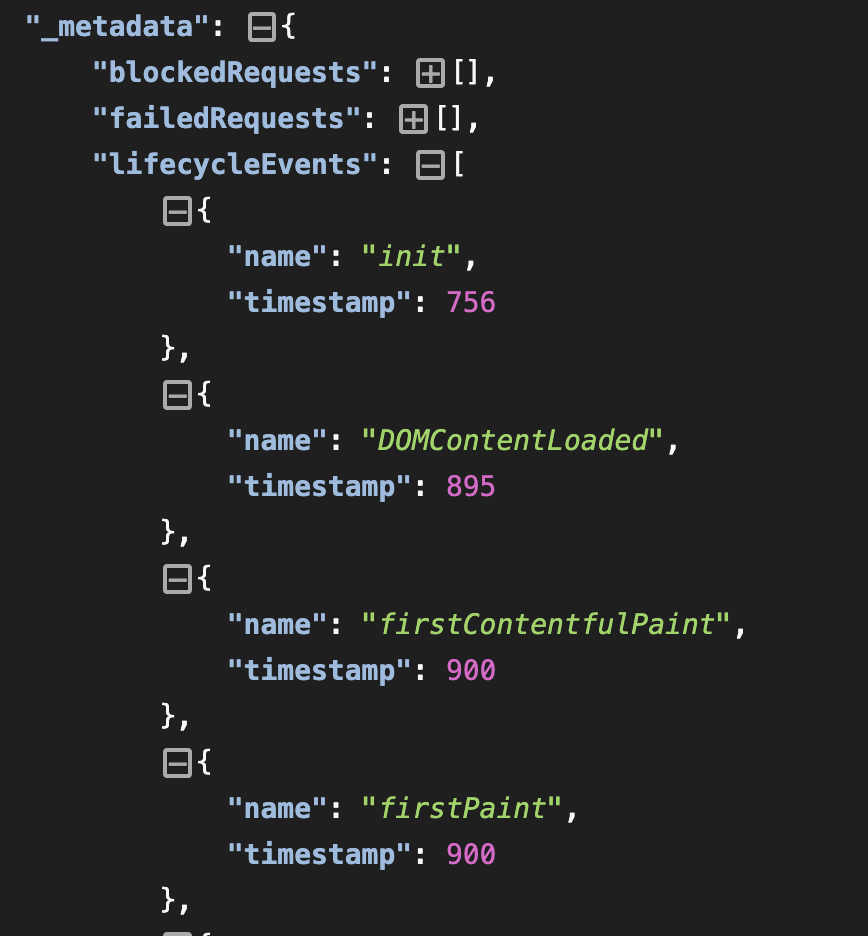

The HAR file is compatible with standard viewers such as the Chrome DevTools Network panel. Open the _metadata key to find EdgeComet-specific data:

• blockedRequests: Resources blocked by block_resources rules
• failedRequests: Network requests that failed during rendering
• lifecycleEvents: Browser events with timestamps (DOMContentLoaded, networkIdle, etc.)
• renderConfig: The exact render configuration applied to the request

Step 7: Manual debug

If the previous steps did not resolve the issue, debug the render process locally.

1. Clone the repository to your local machine
2. Build and run the render service:

   go build -o bin/render-service ./cmd/render-service
   ./bin/render-service -c configs/sample/render-service.yaml

3. Send a render request:

   curl -X POST http://localhost:10080/render \
     -H "Content-Type: application/json" \
     -d '{
       "request_id": "debug-001",
       "url": "https://example.com",
       "viewport_width": 1920,
       "viewport_height": 1080,
       "user_agent": "Mozilla/5.0 (compatible; Googlebot/2.1; +http://www.google.com/bot.html)",
       "timeout": 30000000000,  // 30 seconds in Go nanoseconds
       "wait_for": "networkIdle"
     }'

4. Step through internal/render/chrome/renderer.go with a debugger. This file contains all render logic, including lifecycle event handling and HTML capture.

Step 8: Open an issue

If you find a bug while rendering your website, open an issue on GitHub. Pull requests are welcome.
